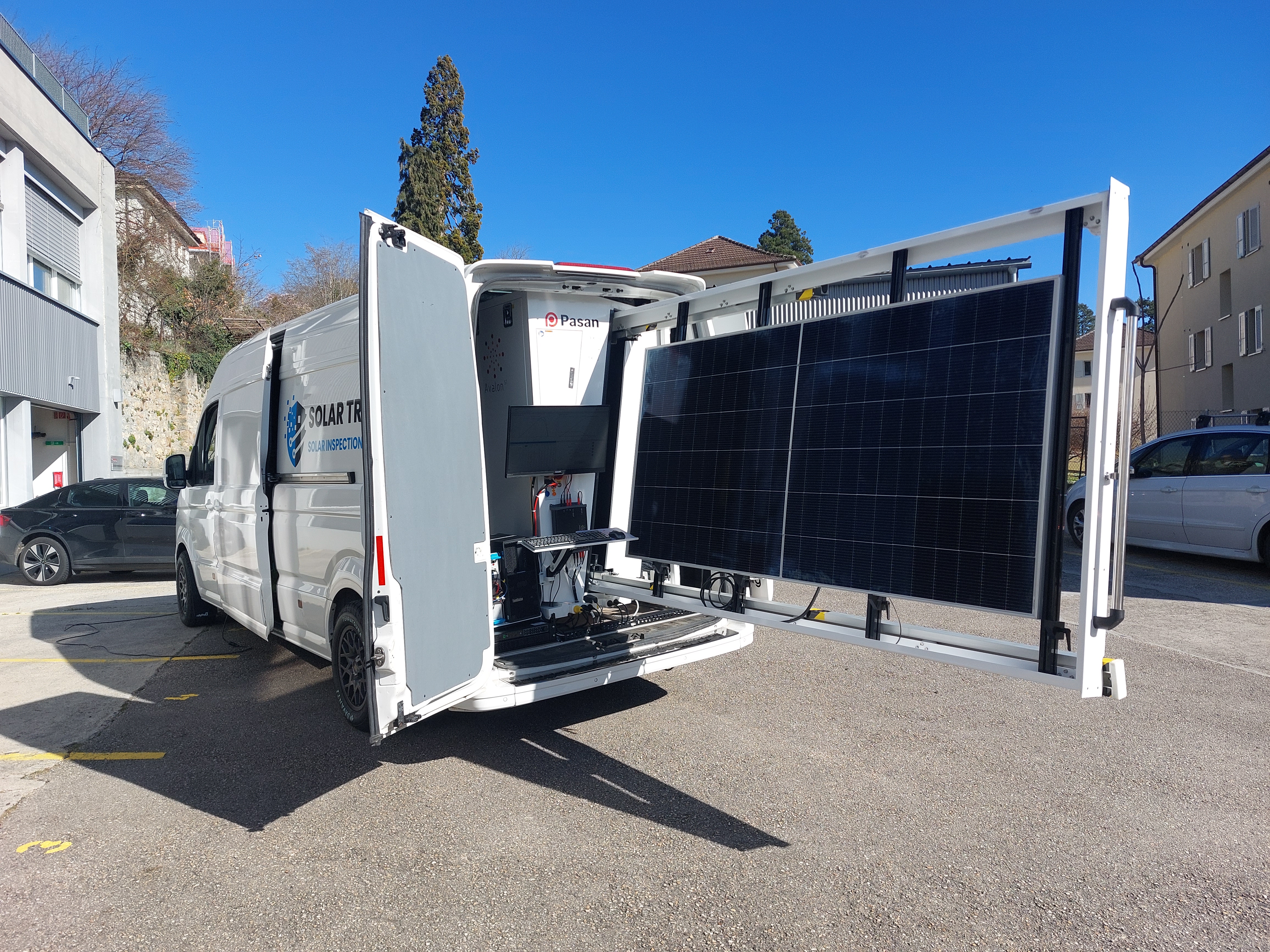

Bring the lab to the plant.
On-site IV flash, electroluminescence and hipot testing, packaged into a van, trailer, or 4.2 m container. Drive in, plug in, measure 60+ modules per hour.
Three measurements, one trip.
IV characterisation, EL imaging and hipot, done on the same module, in the same workflow, with the same calibration chain. No separate vendors, no second mobilisation.
Lab-grade IV under sunlight or rain.
Class A+ A+ A+ pulsed flash with 100 ms exposure. Optional calibration reference panel traceable to Fraunhofer ISE. 60+ modules per hour with full reporting.
See every microcrack before they cost you.
150 Mpx EL imaging captures cell-level defects: microcracks, finger interruptions, dead areas, mismatch. Inline with the IV station, same module, same flow.
Safety verification, on the spot.
Dry hipot, insulation resistance and continuity per IEC 61215 / 61730. Catch isolation faults during commissioning instead of after the next storm.
Pick the chassis. Same Nexun inside.
Van for site-to-site audits, trailer for plant-side commissioning, truck-mounted container for the largest modules and longest deployments. Optics and electronics don’t change.

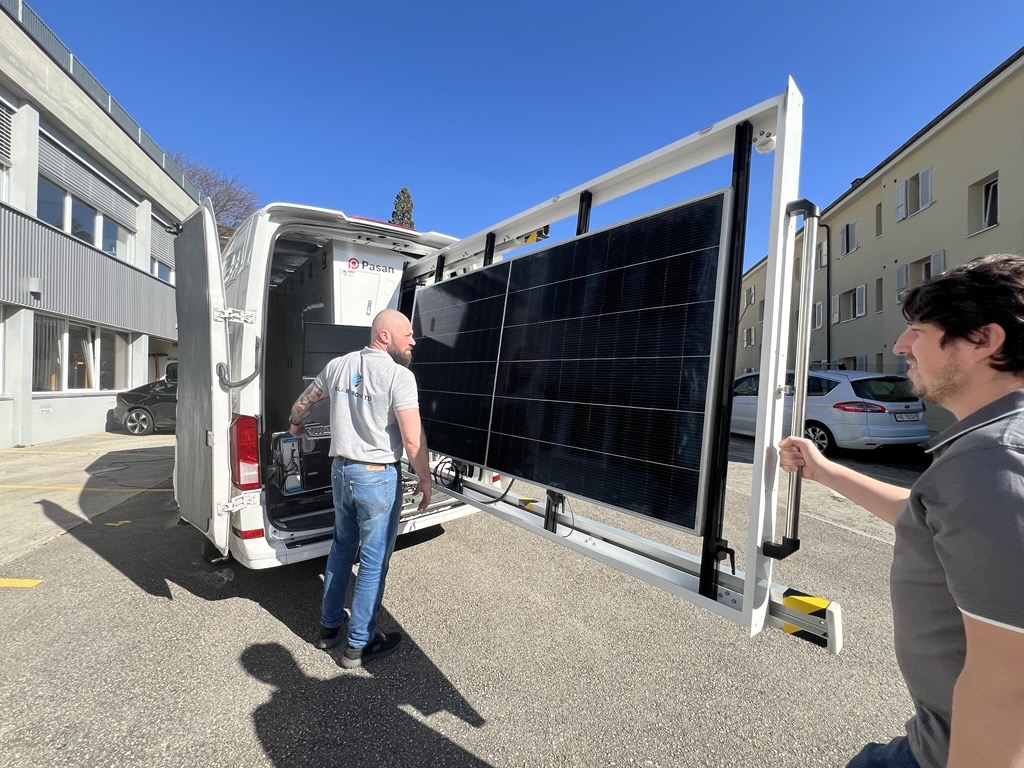

Van
Drop the Mobile Lab into a Sprinter-class van. Drive between sites, deploy in minutes, no trailer license required in most countries.

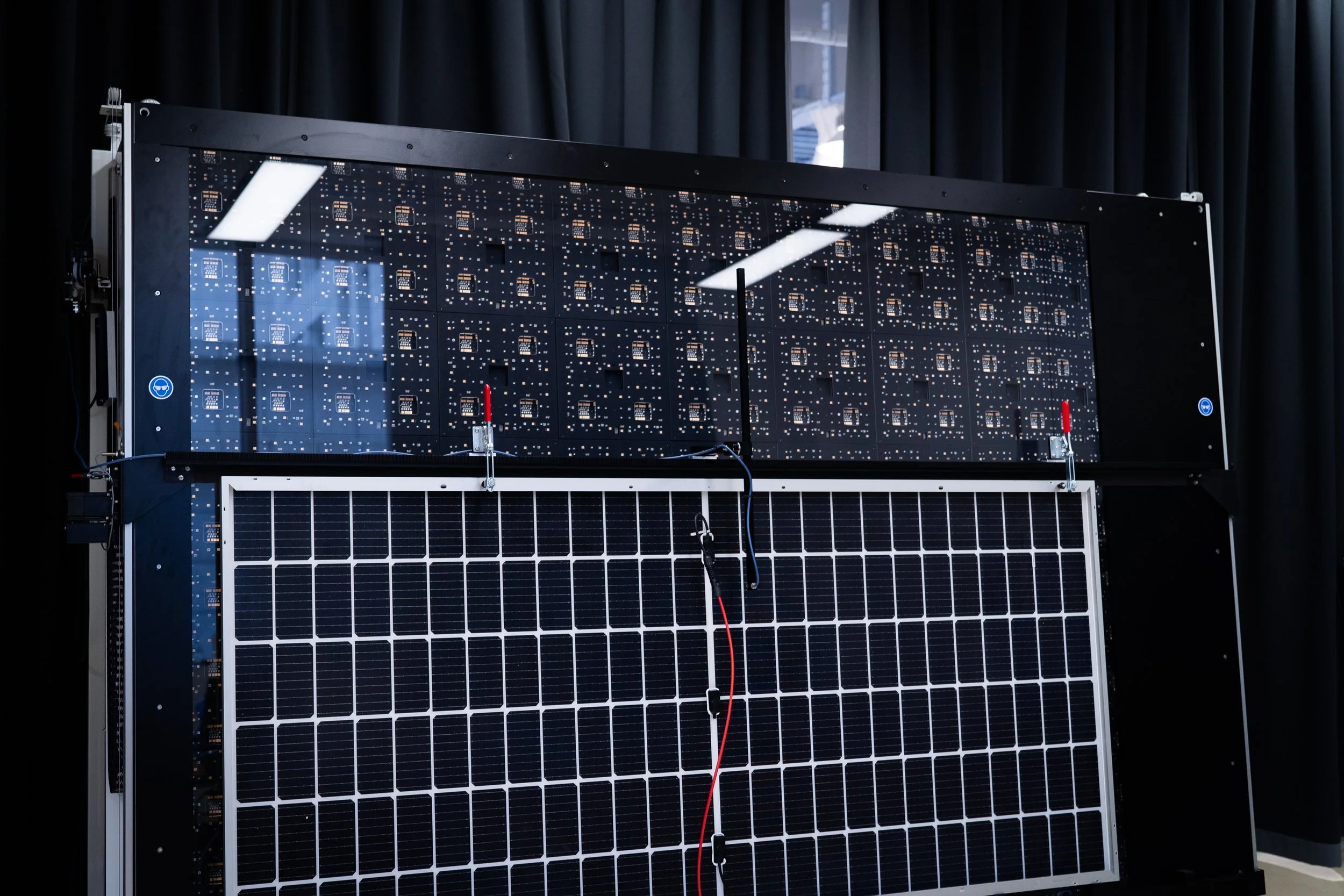

Trailer
Roll-up door, panel rack on rails, walk-in operation. Best for plant-side day-to-day testing where panels move, not the truck.

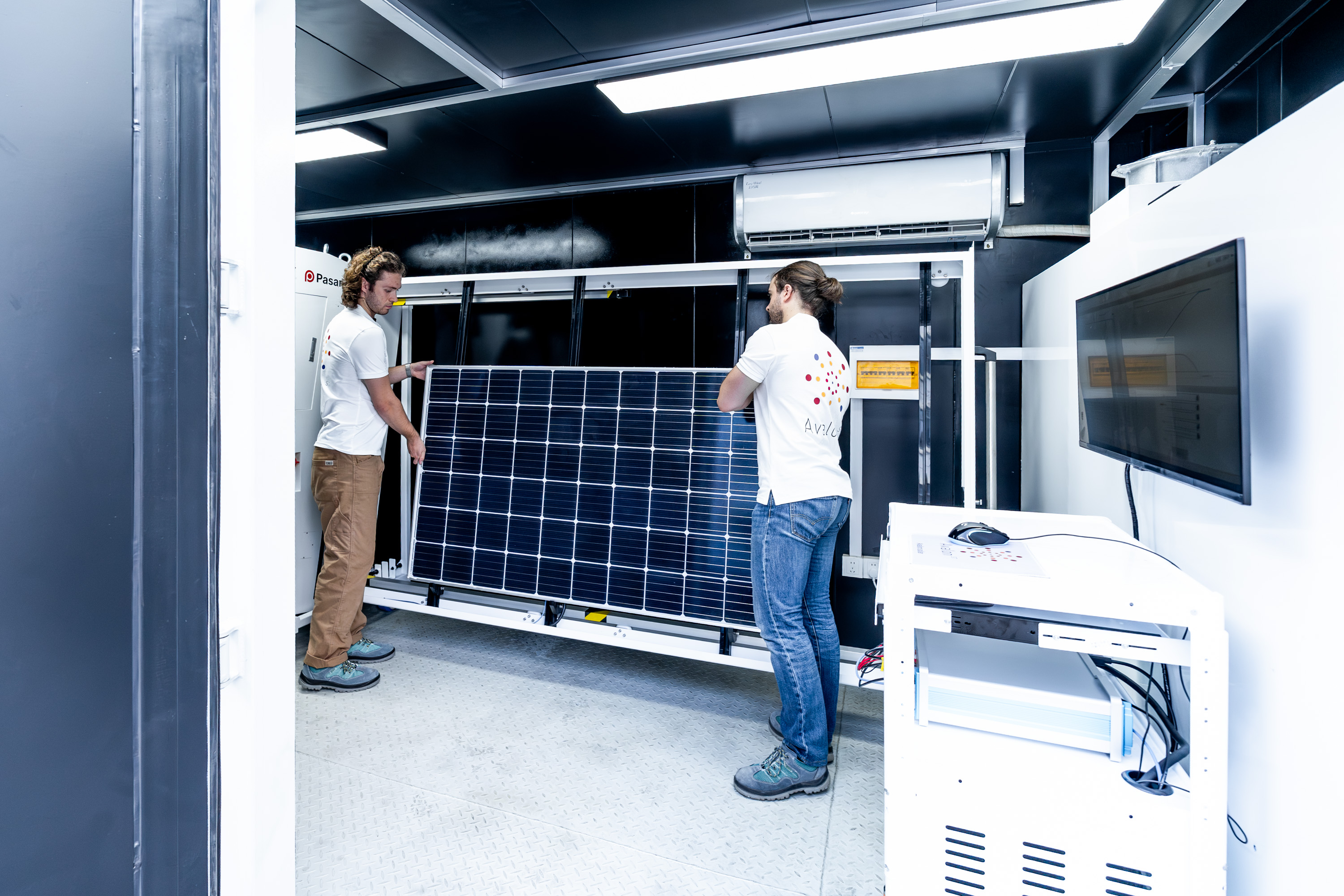

4.2 m container
Mounts on a flatbed truck. Panel rack holds up to 23 modules. Drive on-site, plug in shore power or onboard genset, ready to test in 15 minutes.
Two operators. Sixty modules an hour.

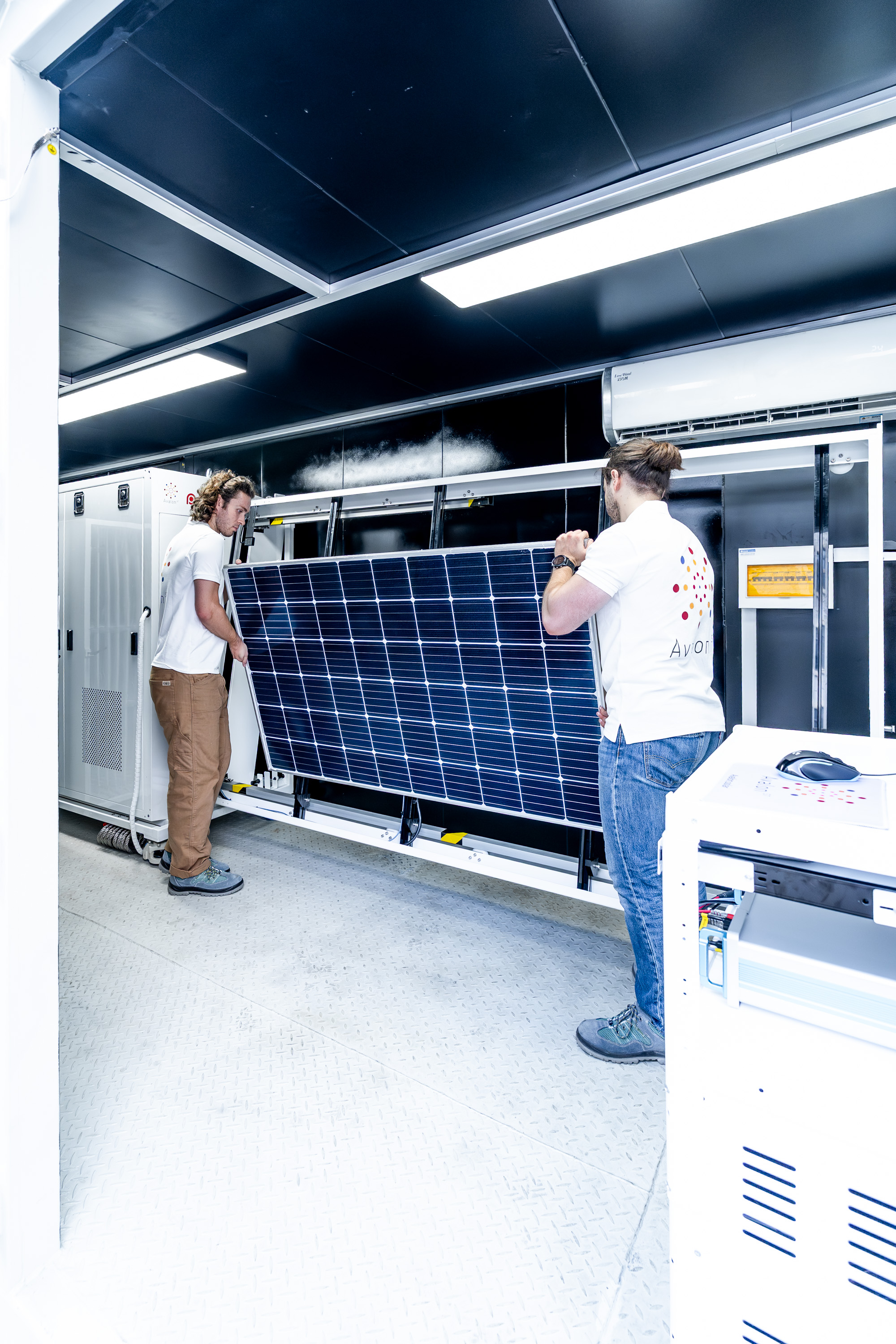

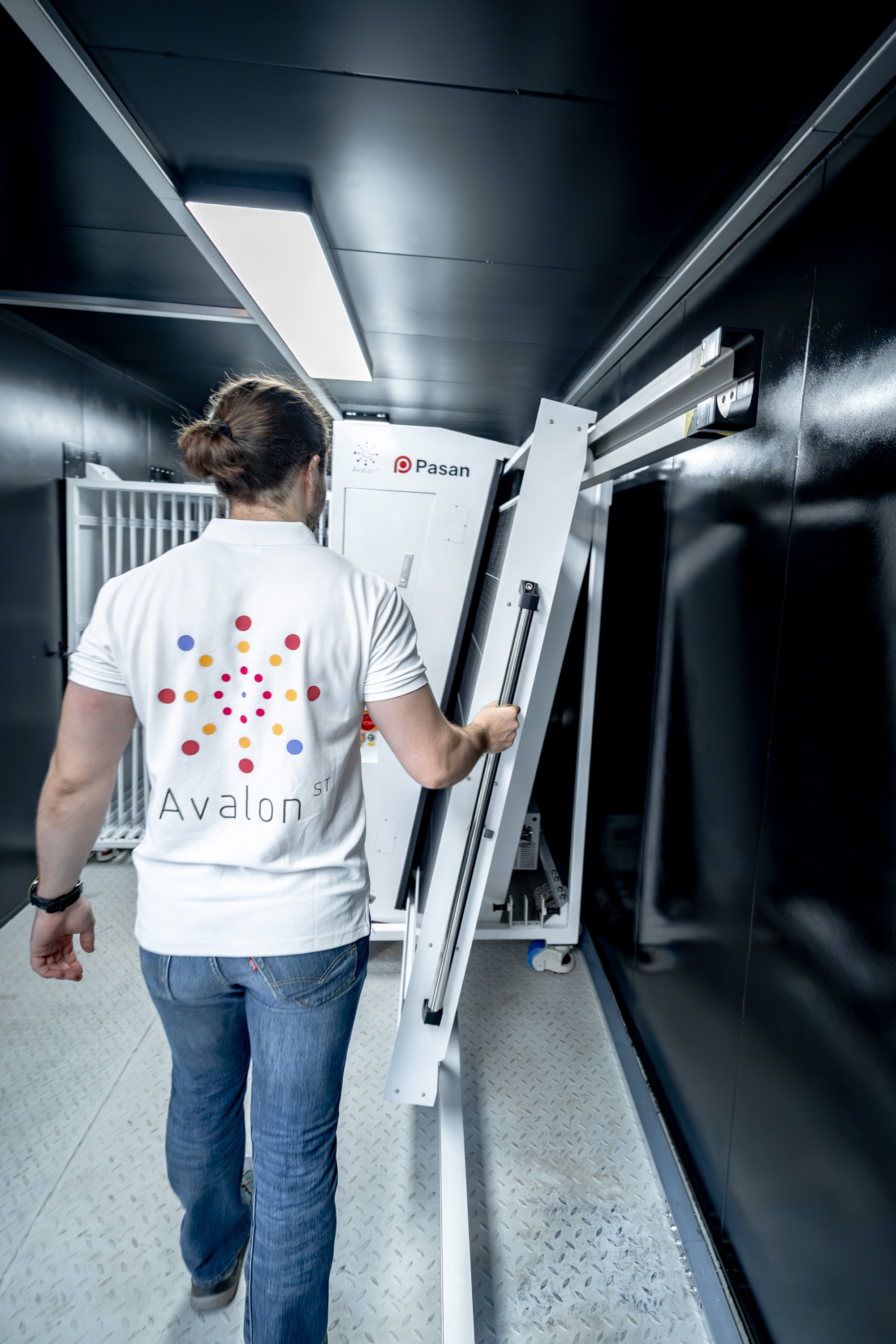

Climate-controlled cabin, calibrated test bay on rails, EL camera on a swing arm, operator console with live IV traces. Same workflow whether you’re parked at a 5 MW ground-mount audit or trucked into a 500 MW desert plant.
Built for the realities of field work.
- ►Commissioning & acceptance, verify every module before sign-off, not after.
- ►Insurance & warranty claims, defensible, traceable evidence with EL backing.
- ►Re-flash old plants, quantify degradation across a 10–15 year-old fleet.
- ►Damaged-shipment triage, sort recoverable from scrap on the dock.
- ►Repower & retrofit, measure incumbent modules before deciding to replace.
- ►Independent revenue, third-party testing service for EPCs, IPPs, asset owners.
Every number, on the table.
Configuration options, calibration certificates and EL camera variants are detailed in the full datasheet, request access below.
Tell us what you’d measure. We’ll size the lab.
Plant size, module type, throughput target, vehicle preference, share the brief and we’ll come back within 48 hours with a configuration and price.
